2.4 GHz Wireless 300Mbps Wi-Fi 802.11 AP Wifi Range Router
Support WPS function, easy for installation.
Extend the wireless coverage in all WLAN networks.
Access to the Internet for computers located on the edge or outside of the range of your access point.
Complies with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n standards.
Provides up to 300Mbps transmission rates.
Support 2.4 GHz WLAN networks.
Maximum WLAN security with WPA2, WPA and WEP (128/64).
2dBi antennas integrated.
Support Wireless Repeater Mode and Standard AP Mode.
Provides one 10/100Mbps Auto-Negotiation Ethernet LAN ports
Setting up a Wireless Infrastructure Network, For a typical wireless setup at home (as shown below), please do the following:
Wireless Repeater Mode: You will need WiFi AP/Router internet access, just plug the wifi extender to a power slot, after configuration to be an access point
Wireless ap Mode: You will need broadband Router internet access, Connect the wifi repeater to your router/switch with RJ-45 Cable
The the brand new designed upgrade Version WPS Wireless-N Repeater is mainly used for providing free WiFi service in big area such as factory, community, office or home, etc. It complies with the IEEE 802.11n standard with wireless transmission speeds of up to 300Mbps. easy to extends the range of your wifi network, no worry about the obstacle weaken the wifi signal, Feel free to access wireless network via your tablet pc, laptop, smart phone anywhere.
It has 2dBi ceramic chip Antennas providing even better wireless performance, transmission rates, stability technology automatically avoids channel conflicts using its channel selection feature. It also works well with other 802.11g and 802.11n protocol wireless products.
Frequency Bands: 2.4 GHz
Frequency range: 2.4-2.4835GHz
Wireless transmit power: 14 ~17 dBm (Typical)
Supported Wireless Protocols: Wi-Fi 802.11a
Power supply unit: 100V-240V AC
Plug Type: US, EU,UK, AU Plug

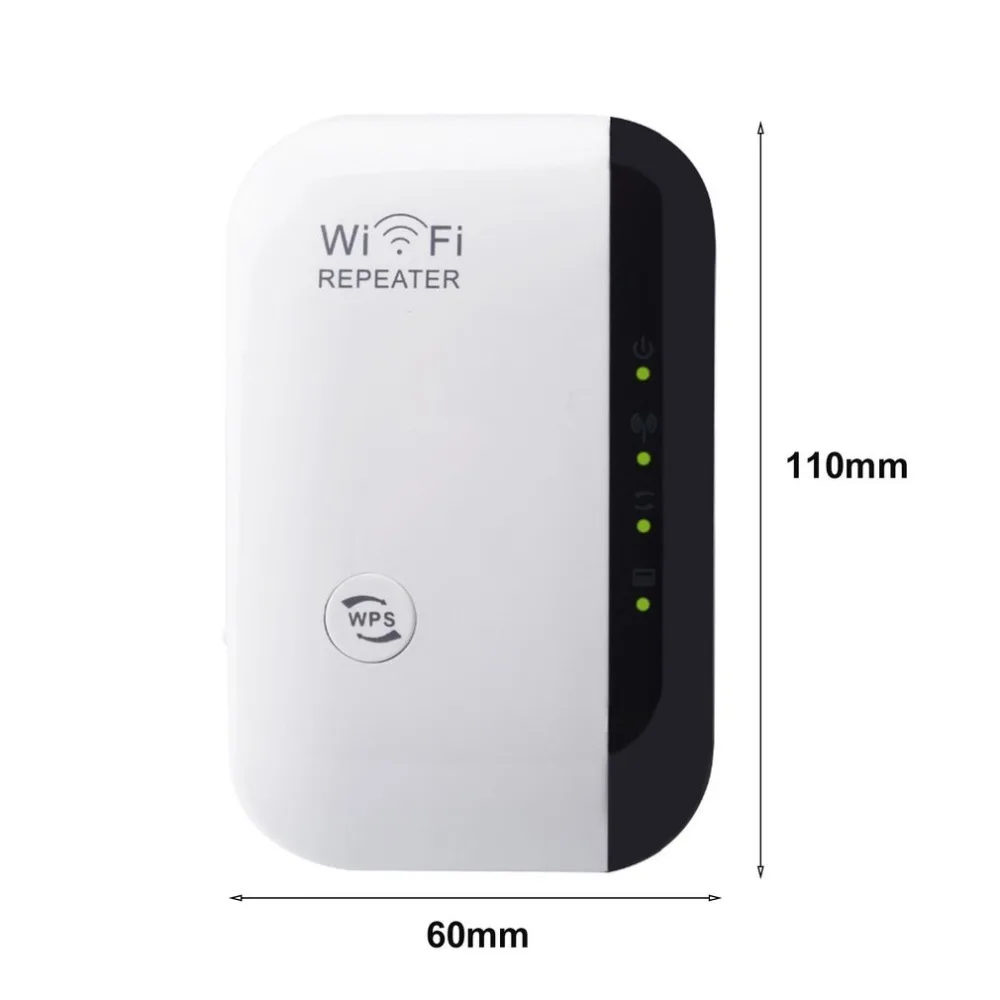

Size: 110 x 60 x 70mm
Networking cable: 1M
Wireless Signal Rates With Automatic Fallback
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11g: Up to 11Mbps(dynamic)
Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
300M: -68dBm@10% PER
150M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
1 x Wireless Wifi Extender Repeater
1 x RJ-45 networking cable
1 x user manual
