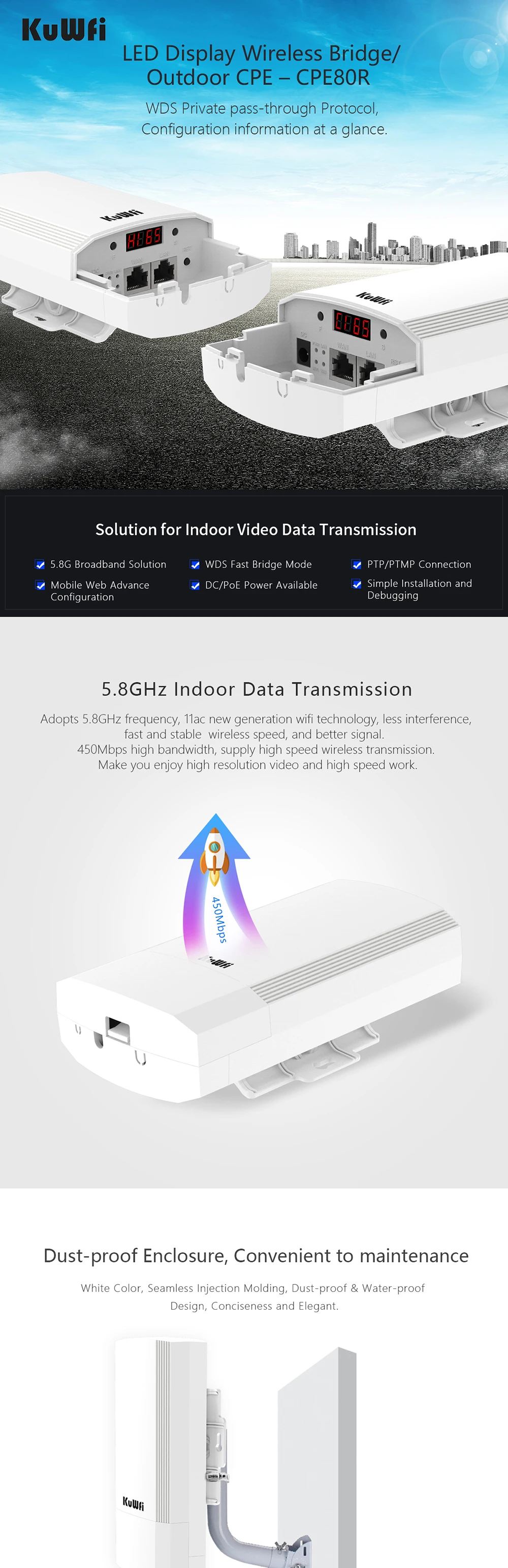

450Mbps Led Display Wireless Bridge CPE-CPE80R

CPE-80SR is an 11ac 5G outdoor CPE with LED display. It comply with 802.11ac Wi-Fi standard, data rate up to 450Mbps, Build in 11dBi panel antenna, the Wi-Fi range to up to 1000 meters. With LED display, wireless AP, Wi-Fi repeater, WDS operation mode, it work in pairs for point to point connection,make more than 16PCS IP camera can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

450Mbps Data Rate

CPE-80SR features 802.11ac Wi-Fi and MIMO technology, 450Mbps wireless speed ensures high speed internet access and more end users access.

High Gain Antenna for more range

With 11dBi MIMO high gain antenna, the point to pointWi-Fi rangeup to 1KM distance. What?s more, it can supply the stable Wi-Fi signal for 15PCSIP Cameras in 500 meters.

Power over Ethernet

CPE-80R has integrated passivePower over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

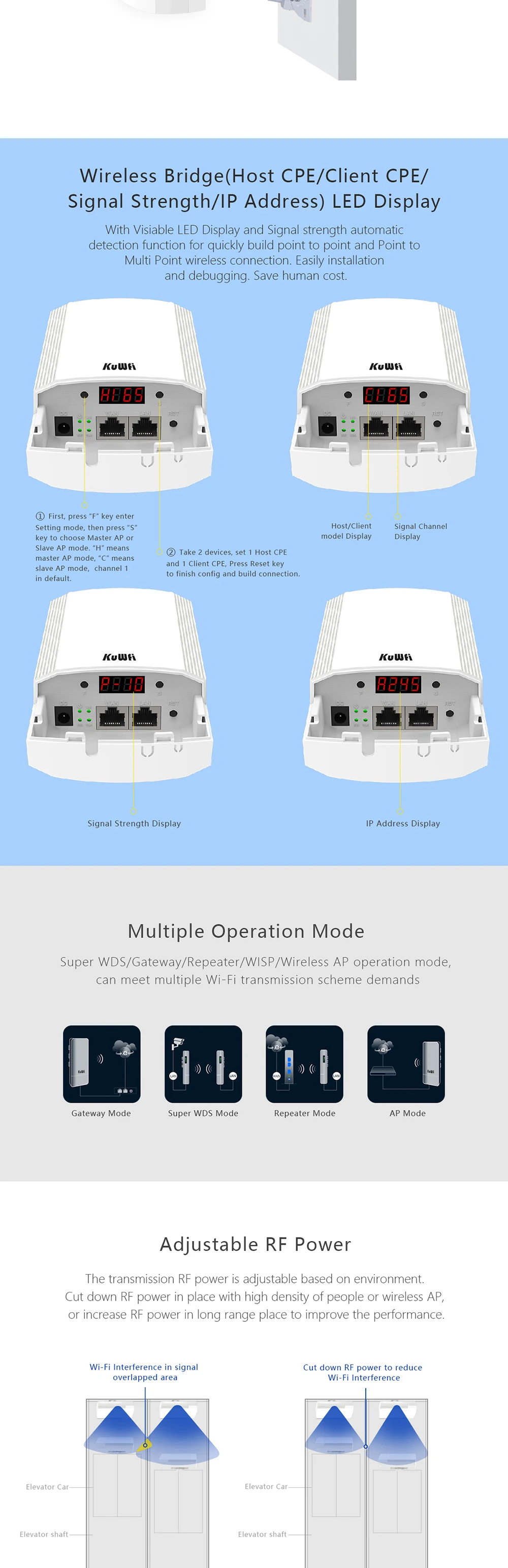

Multiple Operation and LED Display

CPE-80SR support gateway, wireless AP, Wi-Fi repeater, WDS operation mode, it can apply to almost wireless application scene; Then it with LED display to show AP/Client operation mode, Channels, IP address and Signal Strength; What?s more, it is easy to setup CPE-80R?s IP address, RF Power, Channels by set switch on product, no need to access into GUI, avoid the complex setup program, simple to check the working status.

TDMA Support

CPE80SR support HI-MAX TDMA Technology, use polling to solve the hidden node and resource waste problem  between the CPE and base station, provide low latency, high throughput in PTP/PTMP application like IP camera wireless monitoring, long range Wi-Fi Transmission.

Access Controller System & Cloud Management System

With Access Control System under AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore….

Then work with Cloud Management System, easy to do central and remote management, advertisement and multiple authentication make this AP more professional in Wi-Fi Projects.

Main Features:

 Comply with IEEE 802.11ac/a standard, 5G,450Mbps Data Rate

 1*10/100Mbps WAN Port,1*10/100Mbps LAN Port

 Build in 11dBi MIMO panel antenna, stronger signal strength, more wireless coverage

WAN Port support passive PoE

 Support SSID broadcasting, Multi SSID up to 4

 Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WDS operation mode

 With function of build in firewall, IP filter, URL filter and MAC filter

 Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment

 Support DDNS, VPN pass through, Port forwarding and DMZ host

 Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
