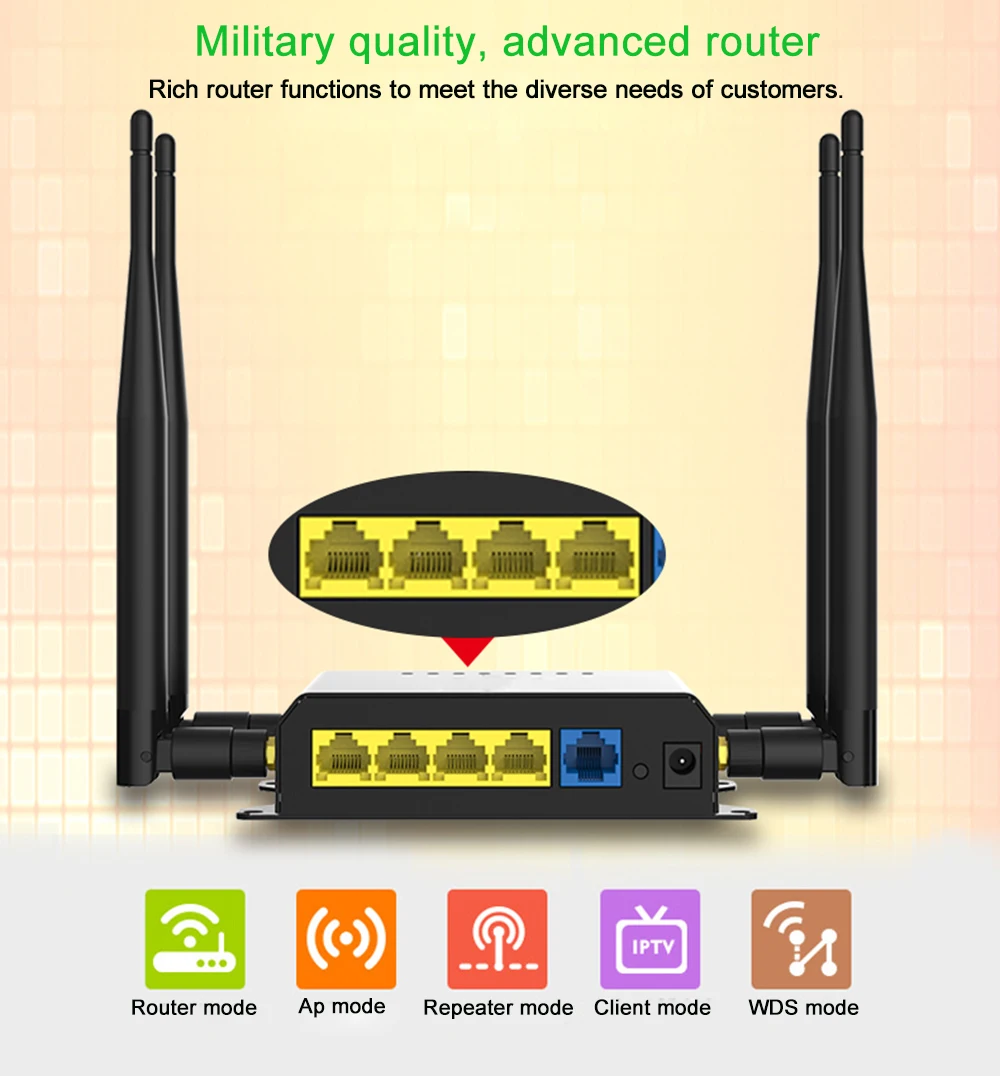

WiFi 128MB WE826 Router 4G Modem With SIM Card Slot
$70.04 – $369.84
Supports WDS:Yes;Wired Transfer Rate:10/100Mbps;Function:Firewall;Function:VPN;Function:QoS;Standards And Protocols:Wi-Fi 802.11b;Standards And Protocols:Wi-Fi 802.11n;Standards And Protocols:Wi-Fi 802.11g;Model Number:WE826-T;WAN Ports:1 x10/100Mbps;With Modem Function:No;Wi-Fi Transmission Standard:802.11b;LAN Ports:4;Brand Name:ZBT;Supports WPS:No;Type:Wireless;Max. LAN Data Rate:100Mbps;Package:Yes;Application:Soho;Wi-Fi Supported Frequency:2.4G;Number of USB Interfaces:1 x USB 2.0;2.4G Wi-Fi Transmission Rate:300 Mbps;Chipset:MT7620A;Flash/RAM:16MB/128MB;Antenna:2 or 4*5dbi external antennas;3G 4G function:Support(3G 4G module is necessary);SIM card slot:1;PCI-E slot:1;SD card slot:1;Warranty period:1 year;Version:English version;

PRODUCT SPECIFICATION
Main Chipset |
MT7620A |
RAM |
DDR2 128MB |
SPI FLASH |
16MB |
Protocol |
IEEE 802.11n?IEEE 802.11g?IEEE 802.11b?IEEE802.11ac ?IEEE802.11a IEEE 802.3?IEEE 802.3u |
RT Power |
802.11b 18dBm?2dBm;
802.11g 15dBm?2dBm; 802.11n 15dBm?2dBm; 802.11ac depends on the 11AC mode; |
Reception Sensitivity |
802.11b: -83dBm@10% PER
802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER 802.11ac: depends on the 11AC mode; |
Work Channel |
2.4GHz choose ?1-13
5GHz choose ?149?153?157?161?165 |
Wireless Rate |
Max 300Mbps |
Work Frequency |
2.4GHz |
Antenna |
2 or 4 *undetachable 5dBi antenna |
Interface |
1*PCI-E slot
1*SIM card slot 1*USB 2.0 port 1*Micro SD card slot 1*10/100/100M WAN port?Auto MDI/MDIX? |
LED |
Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 |
Button |
Reset |
Max Power consumption |
< 12W |
WAN Type |
PPPoE?Dynamic IP? Static IP?3G 4G Dial up |
Work Mode |
AP;
Router; |
DHCP |
Server, Client, DHCP Client List, Address Reservation |
Port Forwareding |
Virtual Server, Port Triggering, UPnP, DMZ |
Firewall Security |
Dos, SPI Firewall
IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
DDNS |
Support |
VPN Pass-Through |
PPTP, L2TP |
Static Router |
Support |
System Log |
Support |
Other Function |
Mac clone NTP Synchronize Web firmware upgrade |
Work Environments |
Operating Temperature?0? ~ 40?? Storage Temperature?-40?~ 70?? |
Operating Humidity?10%~90% non-condensing
Storage Humidity?10%~90% non-condensing
Adapter
12V 1A
Authentication
CE, FCC, RoHs
Other accessories
Power adapter, Network cable
Additional information
Weight | 0.4 kg |
---|---|
Flash/RAM | 16MB/128MB |
Bundle | 3G Version, 4G Asia version, 4G AU version, 4G EU version, 4G USA version 1, 4G USA version 2, Neutral(no 3G 4G) |
Chipset | MT7620A |
Function | QoS |
Version | Englishversion |
Antenna | 2or4*5dbiexternalantennas |
Type | Wireless |
