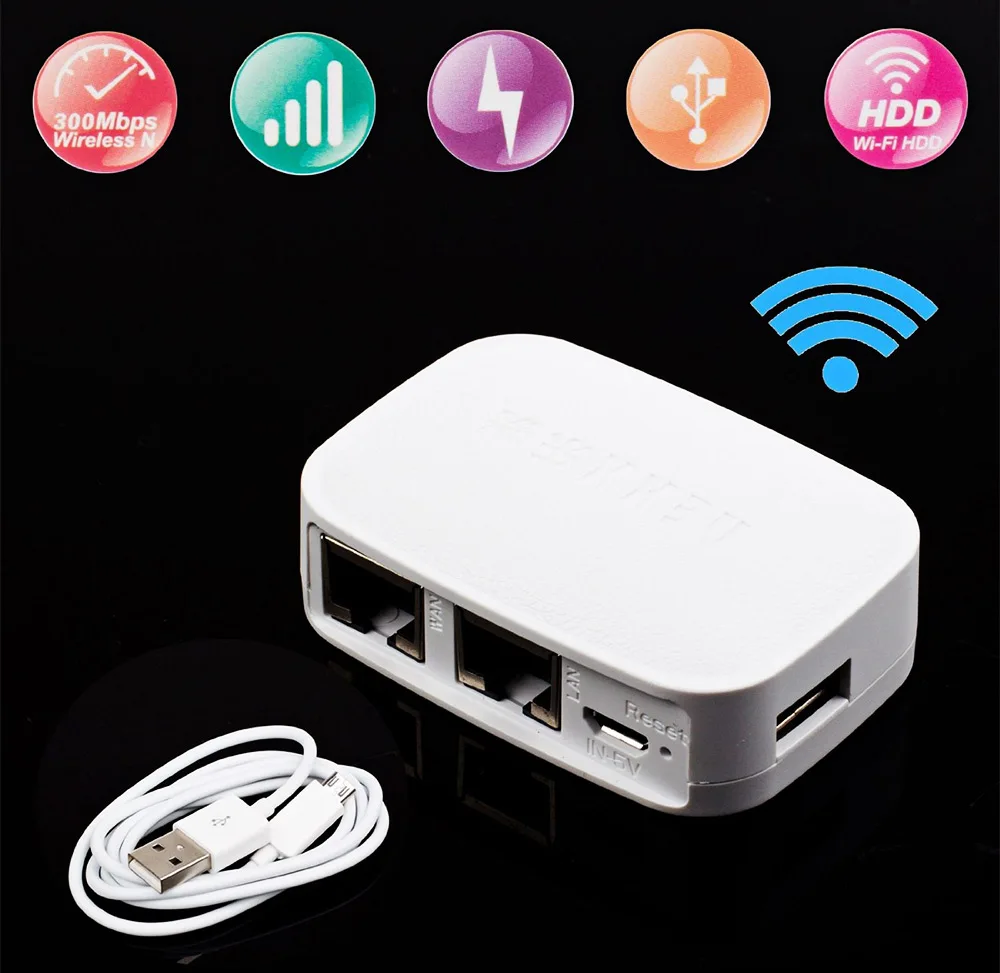

Wireless NAS Router
$31.76
Function:Firewall;Standards And Protocols:Wi-Fi 802.11b;Standards And Protocols:Wi-Fi 802.11n;Standards And Protocols:Wi-Fi 802.11g;Brand Name:PIXLINK;Supports WDS:No;WAN Ports:1 x10/100Mbps;With Modem Function:No;Max. LAN Data Rate:300Mbps;Wi-Fi Transmission Standard:802.11b;LAN Ports:2;Supports WPS:No;Type:Wireless;Package:Yes;Application:Soho;Wired Transfer Rate:None;5G Wi-Fi Transmission Rate:2167Mbps;Model Number:NEXX WT3020F;Wi-Fi Supported Frequency:2.4G;Number of USB Interfaces:1 x USB 2.0;2.4G Wi-Fi Transmission Rate:300 Mbps;Input:5V/1A;Operation Range:300M;Support System:Windows XP,Windows 7,Windows Vista,Mac OS,Windows 2000;Cable Length:1M;Magnetic Base Size:5cm;Max. LAN Data Rate:100Mbs;WAN Ports:2;Number of USB Interfaces:2;Wi-Fi Transmission Speed:300 Mbps;Interface:LAN,Micro USB,USB Charge,WAN;
Features:
– NEXX WT3020F portable mini wireless NAS router for providing free WiFi service.
– Can be applied in factory, community, street or even out for business and traveling.
– Insert smart 2dBi antennas, provides better wireless performance, transmission rate up to 300 Mbps.
– Support file share, can copy or read the files in your USB / HDD by your mobile phone or tablet.
– Improve wireless coverage in all WLAN networks.
– Access to the Internet for computers located on the edge or outside of the range of your access point.
– Complies with IEEE 802.11n / g / b wireless standards .
– Two net port, solve the surfing problem when there is a desktop in addition (cell phone and laptop can use WiFi).
– Multipurpose, use as a primary router, also support wireless repeater mode and standard AP mode.
– Serve as a repeater, strengthen the original WiFi signal, you will never get in the trouble of too weak signal.
– Portable and compact design, easy to carry, convenient for travel and home use.
– Support three power supply modes: USB power supply, cellphone power supply,mobile phone charger power supply.
– Compatible with PC, Windows XP / 7 / Vista, Mac, Linux, iOS, Android.
– External interface: WAN / LAN port, LAN port, Micro USB port, Reset and USB port.
– Large storage: 3G modem, 64 M RAM, 8M flash drive.
– USB power supply: 5V / 1.2A.
– English interface, simple to set up.
– Plug and play, no need to set, convenient for traveling.
– LED indicator, the blue LED lights up when it is connected.
– Chip: 7620N

General | |
Brand | NEXX |
Model | WT3020F |
Type | Modem |
Interface | Micro USB,LAN,WAN,USB Charge |
Router Connectivity Type | Wireless,Ethernet |
Transmission Rate | 300Mbps |
Speed of Ethernet Port | 100Mbps |
Network Protocols | IEEE 802.11n,IEEE 802.11b,IEEE 802.11g |
Wireless Standard | Wireless N,Wireless G |
Wireless Security | WPA-PSK |
WiFi Distance | 100m |
Supports System | Windows 7,Linux,IOS,Win XP,Win vista |
LAN Ports | Under 2 ports |
Max. LAN Data Rate | 300Mbps |
Product Detail | |
Freq | 50Hz-60Hz |
DC Port | 5.5 x 2.1 |
Gain dBi | 2dBi |
Quantity of Antenna | 2 |
Working Voltage | 5V 1.2A |
Language | English |
Firewall Settings | Support |
Dimensions and Weight | |
Product weight | 0.0290 kg |
Package weight | 0.0730 kg |
Product size | 6.40 x 4.50 x 1.80 cm / 2.52 x 1.77 x 0.71 inches |
Package size | 8.20 x 12.00 x 3.80 cm / 3.23 x 4.72 x 1.5 inches |
Packing List | |
Packing List | 1 x Wireless NAS Router, 1 x USB Cable, 1 x Quick Installation Guide |
Additional information
Weight | 0.4 kg |
---|---|
Function | Firewall |
color | White |
Input | 5V/1A |
Type | Wireless |
Package | Yes |
Application | Soho |
Interface | LAN,MicroUSB,USBCharge,WAN |
